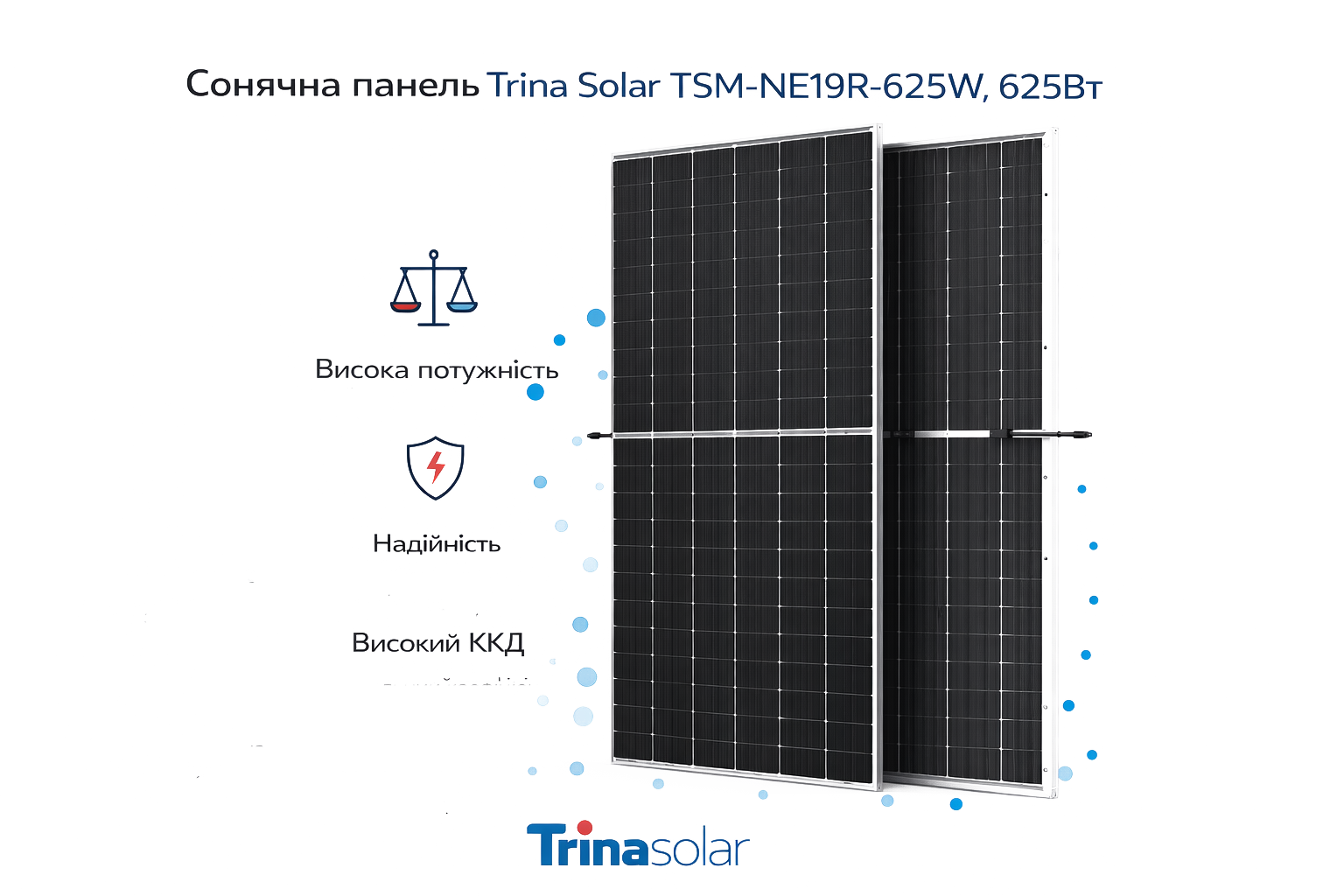

Trina Solar TSM-NE19R-625W Solar Panel, 625W

Description

Trina Solar TSM-NE19R-625W – потужністю 625 Вт є покращеним варіантом фотомодуля в порівнянні з менш потужними панелями  Vertex 2023 року виробництва. Такі фотомодулі формуватимуть напрям розвитку цілої сфери сонячної енергетики – потужність і ефективність вже наближається до 700 W, or even 800 watts. As a result, the station owner will save on the total number of panels and the mounting system. The efficiency of this photovoltaic module has been increased to 23.1%. A significant improvement in the module is its reduced temperature coefficient of power.and down to -0.29 %/C. Такий показник є кращим, ніж у конкурентів, і дозволяє даному модулю краще працювати при високих температурах. Струм максимальної потужності пристрою становить 15.00 Ампера, напруга максимальної потужності становить 41.6 Вольта.

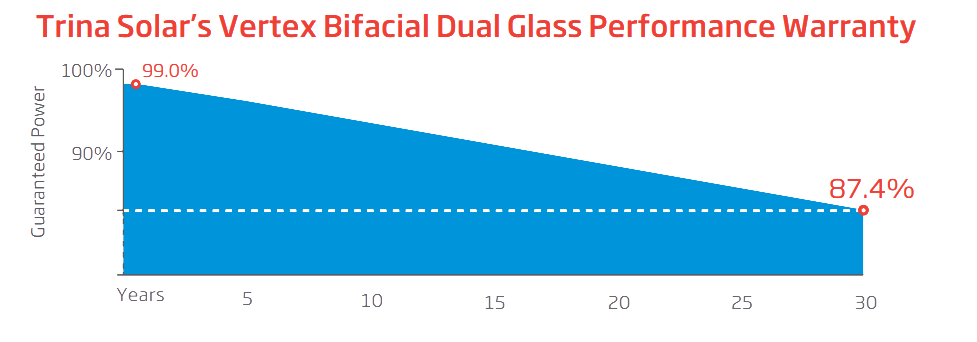

The panel features a half-cell architecture. The cell size has been increased to improve the module’s performance. Thanks to this architecture and advanced photovoltaic cells, the panel achieves high power output even under shading or low sunlight levels. The panel was designed to ensure that PID degradation is as slow as possible and does not significantly affect the module’s performance. The maximum degradation of the solar module is 0.41 TP3T per year from the 2nd to the 25th year of operation, totaling no more than 10.61 TP3T over 25 years. PERC This technology is also one of the reasons for this panel's high efficiency. It has 10 current-collecting tracks. Despite its high power output, the solar panel weighs 28.8 kg.

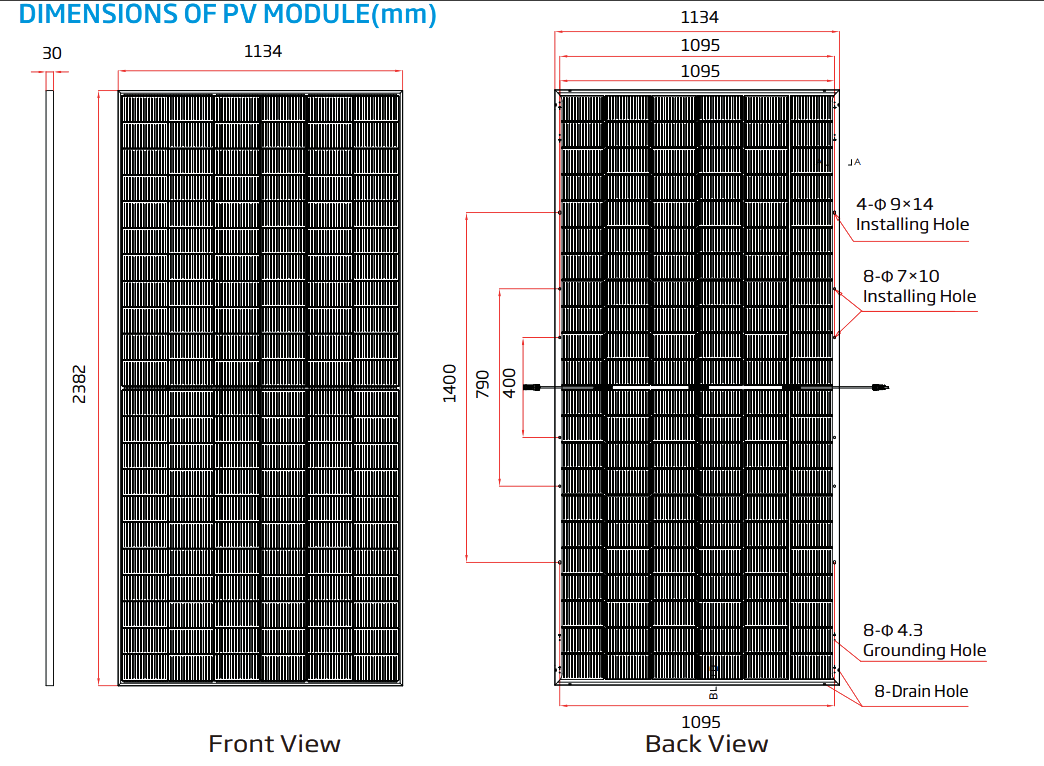

Габарити Trina Solar TSM-NE19R-625W larger than previous models—up to 2382×1134×30 mm. The aluminum frame (anodized) is corrosion-resistant, which extends the module’s overall service life. EVA film is used as the encapsulant, and the overall protection rating of the enclosure meets the IP68 standard. The panel has undergone technical testing and is certified for front loads of up to 5,400 Pa and rear loads of up to 2,400 Pa.

For better stability of the module, we recommend securing it to 3 rails, since this model lacks a reinforcing rib. An additional rail in the middle will significantly improve the module's stability against wind and mechanical loads.

This panel is used as a power-generating array for both residential and industrial solar power systems. The product warranty is 12 years; the linear warranty is 25 years.
