Risen Solar RSM40-8-410M Solar Panel

Description

Risen RSM40-8-410M Solar Panel – This is a photovoltaic module with excellent technical specifications and a high degree of reliability. The advantages of this photovoltaic module stem from the use of cutting-edge technologies in the “green” energy sector—Half-Cell topology, monocrystalline photovoltaic cells, with an efficiency of 21.31 TP3T and a power output of 410 W.

A Chinese brand manufactures photovoltaic modules Risen Energy. The quality of our products is confirmed by numerous certificates of conformity. The company's in-house laboratory thoroughly tests every batch of photovoltaic modules so that you can be confident in your purchase.

Rated power RSM40-8-410M is 410 watts. The high power output allows the owner to save some space when installing the station, and the smaller number of panels will make installation faster.

The main technical specifications are as follows: at maximum operating power, the voltage and current are 34.89 V and 11.76 A, respectively. The short-circuit current is 12.47 A, and the open-circuit voltage is 41.90 V.

The key features of the panel are as follows:

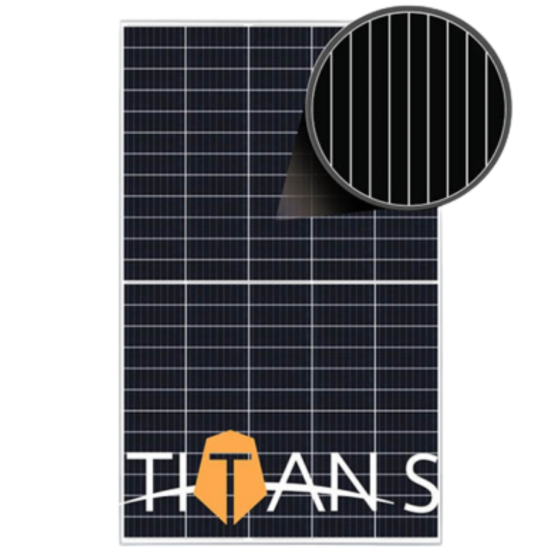

1. Half-Cell architecture. To minimize potential power losses in the photovoltaic module due to shading, the panel is designed using a Half-Cell topology. This doubles the number of cells while maintaining the same area. When a shadow falls on one part of the photovoltaic module, the other part continues to operate effectively.
2. One of the lowest thermal power coefficients in the industry is 0.34%. This means that when a photovoltaic module is heated by 1 degree above normal (45 C^o), it will lose only 0.34% of its rated power.
3. Certified to withstand harsh environmental conditions. The surface of the photovoltaic module is anti-reflective and anti-soiling. The panel is resistant to salt fog, ammonia, and sand and dust storms.
4. The positive power margin ranges from +0 to 5 watts.
5. The mechanical load rating is 2,400 Pa, and the snow load rating is 5,400 Pa.   ​

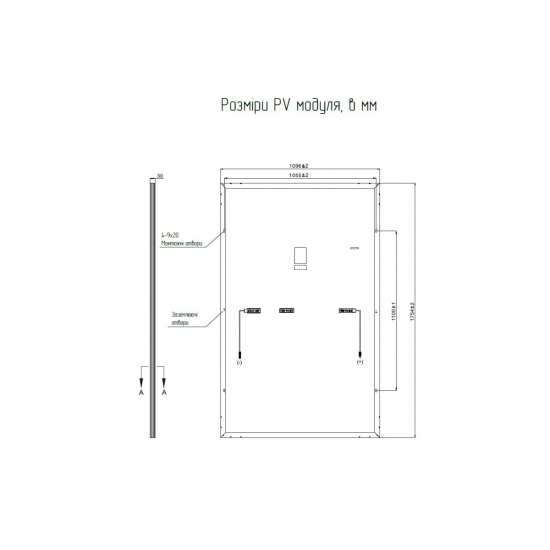

The device’s dimensions and weight are as follows: 1754 × 1096 × 30 mm, and it weighs 21 kg. The panel frame is made of anodized aluminum, so it is virtually corrosion-resistant. The operating temperature range is from -40 to +85°C.

Overall, this photovoltaic module will be the ideal solution for both industrial and residential power stations.
