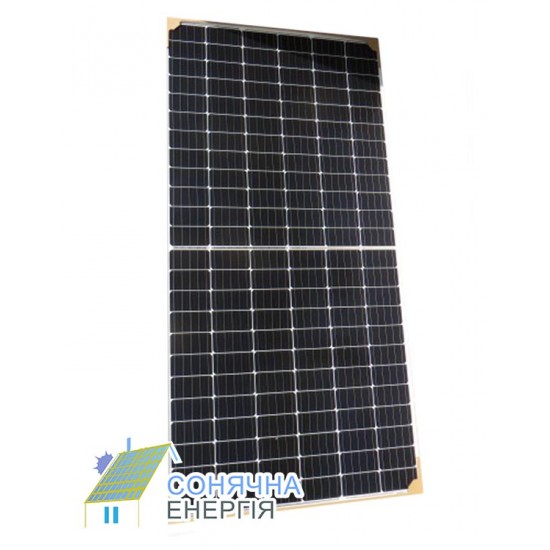

Risen RSM40-8-400M Solar Panel

Description

Photomodule Risen RSM40-8-400M – A powerful yet compact solar module developed by the well-known Chinese brand Risen Energy. This company is one of the industry leaders and is regularly included in Tier 1 rankings.

This photovoltaic module has a number of features that set it apart from its competitors. First and foremost, its dimensions, which are ideal for rooftop installations. The module has an area of 1.93 square meters, which is a significant advantage in an era of large, high-power modules.

Power per square meter – 208 W, which is a high figure. The photovoltaic module is part of the series Titan – a new product on the market from Risen Energy.

The panel is made of high-quality monocrystalline silicon, which is considered superior to its polycrystalline counterpart. This photovoltaic module delivers high efficiency in both sunny and cloudy weather. This solar panel is manufactured using Half-Cell PERC technology, which increases its overall efficiency. It contains a total of 120 solar cells.

Technical Specifications, Features, and Characteristics of the RSM144-6-390M:

• One of the lowest industry-wide temperature coefficient of power values—0.341 TP3T/C—allows the panel to operate efficiently even at high temperatures.
• The product has been certified by leading expert organizations, such as TÜV SÜD. It complies with ISO 9001 and ISO 14001 standards.
• The photovoltaic module is resistant to PID degradation. This results in a longer service life for the photovoltaic module. A power plant built with these photovoltaic modules will operate for more than 30 years.
• Thanks to the use of half-cell technology and monocrystalline cells, the photovoltaic module performs more efficiently in shaded conditions and on cloudy days. This increases the plant’s overall power generation and, as a result, the revenue from electricity sales.
• 12-year product warranty – one of the longest on the market. The warranty guarantees that the 90% will retain 90% of its original power;

​

• The RSM40-8-400M has a certain power reserve, and its reliability and quality exceed even the certified requirements;
• The 100% EL double inspection ensures that the modules are free of any external defects;
• A solar panel is capable of withstanding harsh environmental and chemical conditions, such as exposure to salts or ammonia, and sandstorms;
• An anti-reflective coating reduces power losses caused by dust or dirt on the panel;
• High resistance to mechanical loads of 2,400 Pa and snow loads of up to 5,400 Pa.

 Device dimensions: 1754 x 1096 x 30 mm. It weighs 21 kg.
