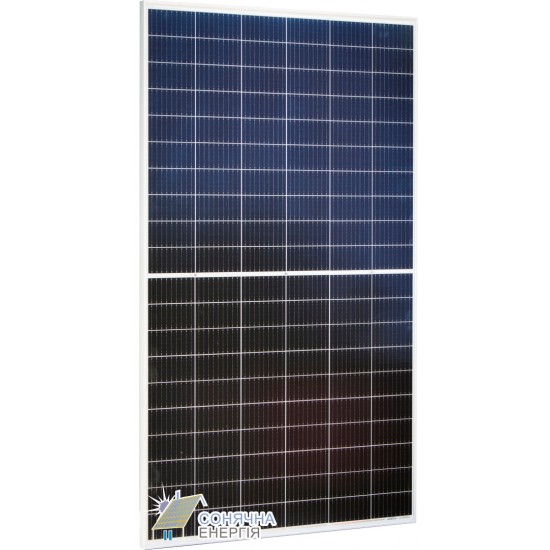

Risen RSM120-6-340M Solar Panel

Description

The Jager series of photomodules from the company Risen Energy, throughout 2019 and 2020, it established itself as one of the most successful in the industry. The RSM120-6-340M offers an excellent combination of both technical specifications and dimensions. The panel is a half-cell type and features 9 current-collecting paths for better current conductivity and increased cell stability. The manufacturer of this model, Risen Energy, is a leading Chinese brand in the field of photovoltaic module manufacturing. The company provides technical support to its customers and offers service consultations. It is included in Bloomberg’s list of the largest Tier 1 photovoltaic module manufacturers.

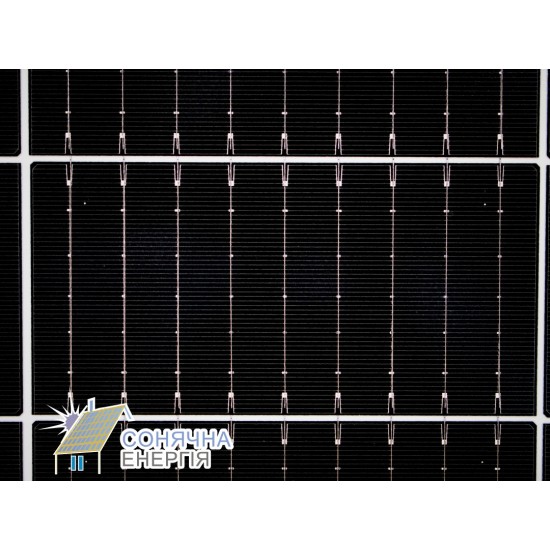

Photovoltaic module power RSM120-6-340M amounts to 340 watts. It is made of monocrystalline silicon. The Half-Cell architecture allows the RSM120-6-340M to perform more efficiently in shaded areas or under low-light conditions. Several solar cell segments. Nine busbars (9 BB) on the solar cells make the solar panel more resistant to overheating and ensure reliable performance at high temperatures, while also minimizing degradation throughout its service life.  The solar module’s efficiency is 20.2 %.

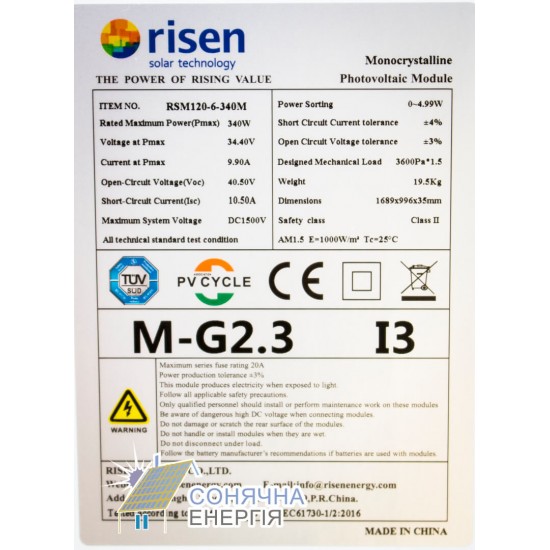

Voltage and current ratings at Pmax: the voltage is 34.4 V, and the current rating is 9.9 A. The open-circuit voltage is 40.5 V. The short-circuit current is 10.5 A. The maximum fuse current is 20 A. The maximum system voltage for the photovoltaic module is 1,500 V.

The nominal operating temperature of the photovoltaic module is 45 C^o (tolerance of 2 C). The temperature coefficients of the photovoltaic module are as follows: voltage -0.29 %/°C, current 0.05 %/°C, -0.37 %/°C. The coefficient determines the percentage loss of each value when the photovoltaic module is heated by 1 C above the standard temperature. It operates at ambient temperatures ranging from -40°C to +85°C, allowing the photovoltaic module to be used in all climatic zones.

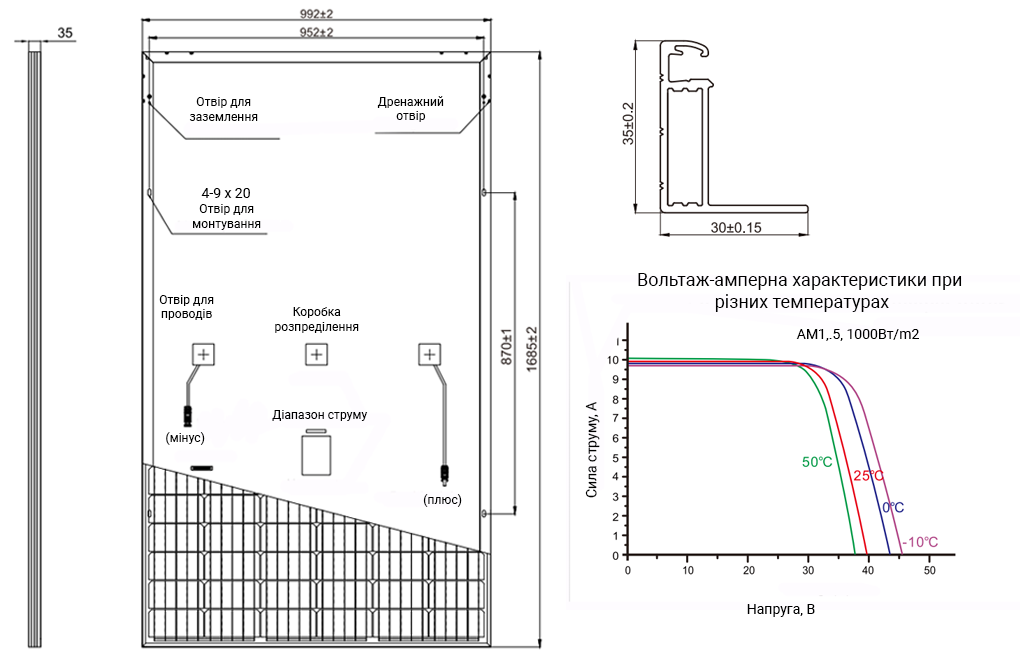

The frame is lightweight and, in addition, corrosion-resistant, as it is made of anodized aluminum. The glass is 3.2 mm thick, so it effectively protects the panel from minor mechanical impacts. The glass is characterized by high light transmittance and durability.

The warranty for the photovoltaic module is 12 years. The warranty for linear power output is 25 years.
