Risen Jager RSM144-6-400M Solar Panel

Description

Solar Photomodule Risen RSM144-6-400M It can confidently be called one of the best on the market. This is due to its half-cell architecture, monocrystalline design, high efficiency, and high power output.

These panels are manufactured by a leading company in the field of «green energy»— Risen Energy. The quality of our products is confirmed by numerous certificates of conformity. The company’s in-house laboratory conducts thorough testing of every batch of photovoltaic modules, so customers can be confident in the reliability and quality of the product.

The RSM144-6-400M has a rated power output of 400 W. This high power output allows the owner to install the system with fewer panels. As a result, the customer will save space for installation, if needed.

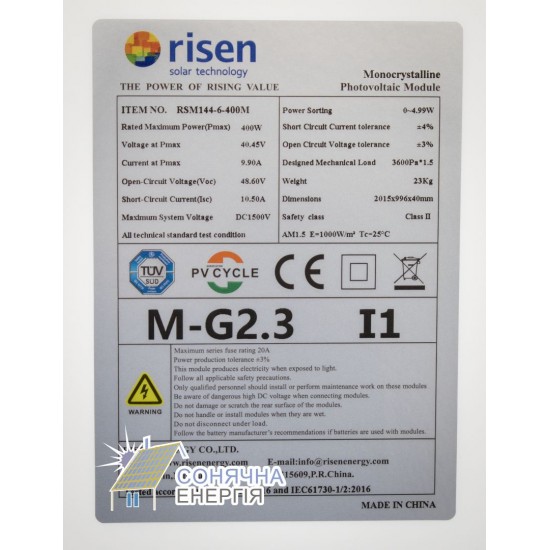

The main technical specifications are as follows: at maximum power, the voltage and current are 37.05 V and 9.8 A, respectively. The short-circuit current is 10.5 A, and the open-circuit voltage is 48.6 V.

The key features of the panel are as follows:

1. Half-Cell architecture. To minimize potential power losses in the photovoltaic module due to shading, the panel is designed using a Half-Cell topology. This doubles the number of cells while maintaining the same area. When a shadow falls on one part of the photovoltaic module, the other part continues to operate effectively.
2. One of the lowest thermal power coefficients in the industry—0.37 %. This means that when the photovoltaic module is heated by 1 degree above the standard temperature (45 C0), it will lose only 0.37 % of its rated power.
3. Certified to withstand harsh environmental conditions. The surface of the photovoltaic module is anti-reflective and anti-soiling. The panel is resistant to salt fog, ammonia, and sand and dust storms.
4. The positive power margin ranges from +0 to 5 W.
5. The mechanical load rating is 2,400 Pa, and the snow load rating is 5,400 Pa.

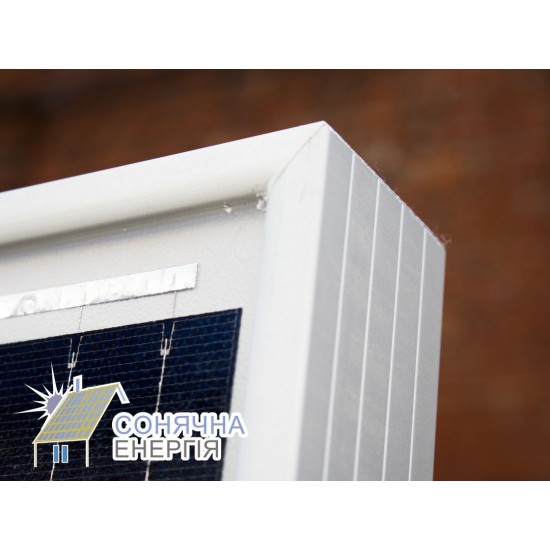

The device’s dimensions and weight are as follows: 2015 × 996 × 40 mm, and it weighs 23 kg. The panel’s frame is made of anodized aluminum, so it is virtually corrosion-resistant. The operating temperature range is from -40 to +85.

Overall, this photovoltaic module will be the ideal solution for both industrial and residential power stations.
