Risen Energy RSM110-8-540 BMDG Solar Panel

Description

Двосторонній фотомодуль RSM110-8-540B MDG – A high-performance device designed for use in photovoltaic systems. Developed by the well-known Chinese brand Risen Energy. This company is one of the industry leaders and is regularly included in Tier 1 rankings. As for the photovoltaic module, it boasts one of the highest power ratings on the market, a unique architectural design, and excellent efficiency.

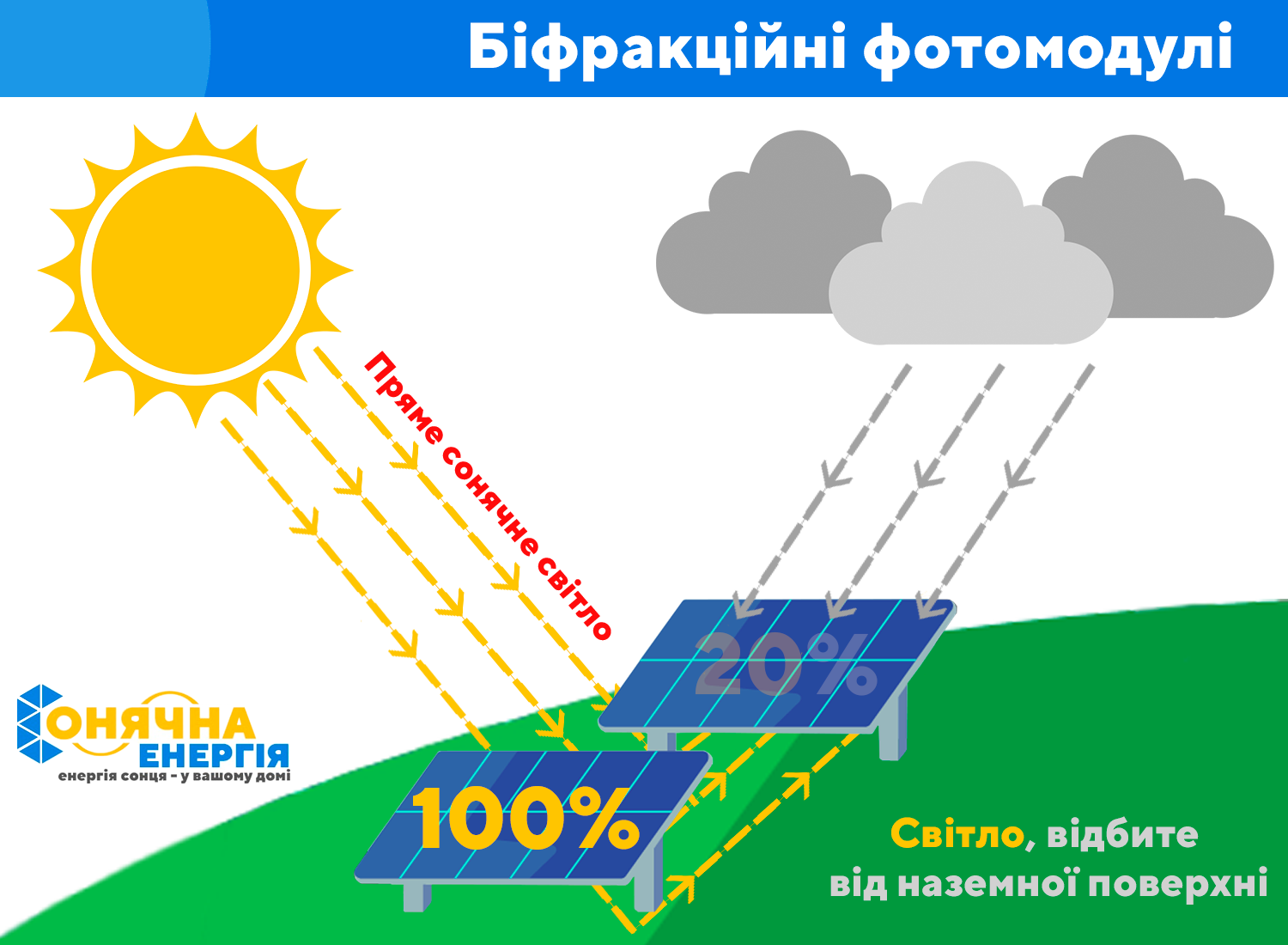

All in all, bifractional panels are currently considered the most efficient on the market. Why? Both sides are involved in electricity generation because the back side has a transparent coating. This increases the module's total output by 10–20%. In addition, double-sided panels are more aesthetically pleasing. They are well-suited for use in locations with limited installation space.

Risen 540W BMDG is a high-power module with a rated value of 540 Вт. The rear side adds another 50 W of power, so under high levels of sunlight, this module functions as 540 Вт панель.

The efficiency of a solar cell is 20.7 %, which is why the panel is extremely efficient at converting solar energy into electricity. The panel type is monocrystalline Cut Half-Cell and PERC, which explains this photovoltaic module’s high performance.

Number of photovoltaic cells (cells) – 110. They are arranged in groups of 6 across 24 rows. The device measures 2,384 mm by 1,096 mm by 35 mm. The photovoltaic module weighs 32.5 kg. The module is covered with 2 mm tempered glass on both the front and back sides.

The temperature coefficients (for power, voltage, and current) are as follows: for power, this value is -0.34 %/C^o, which is a record low on the Ukrainian market; for voltage, it is -0.25 %/Co, and for current, the temperature coefficient is 0.04 %/Co. These coefficients determine the percentage loss of each characteristic when the photovoltaic module is heated by 1 °C.^o deviation from the norm (45 C^o).

Solar Panel Warranty Risen RSM110-8-540 BMDG is 12 years. After 10 years of operation, the photovoltaic module loses no more than 6 % of its rated power. After 25 years, the loss is no more than 15 %. The device’s total service life is over 30 years. The linear performance warranty for the device is 30 years.
