Luxen MaxPower MPSE-325M Solar Panel

Description

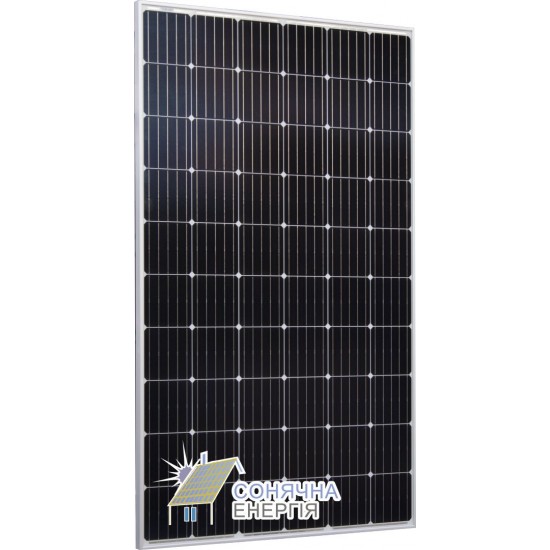

MaxPower MPSE-325M Solar Module – This is a high-quality photovoltaic module with a rated power of 325 W, manufactured by the Chinese company Luxen Solar, a well-known Chinese brand. The company specializes in manufacturing photovoltaic modules of various types and power ratings, including both monocrystalline and polycrystalline modules. This particular photovoltaic module belongs to the MaxPower series, whose main features include high power output, a low temperature coefficient, and high efficiency.

This photovoltaic module is made from monocrystalline silicon, which offers higher operating efficiency than a polycrystalline module of the same power rating.

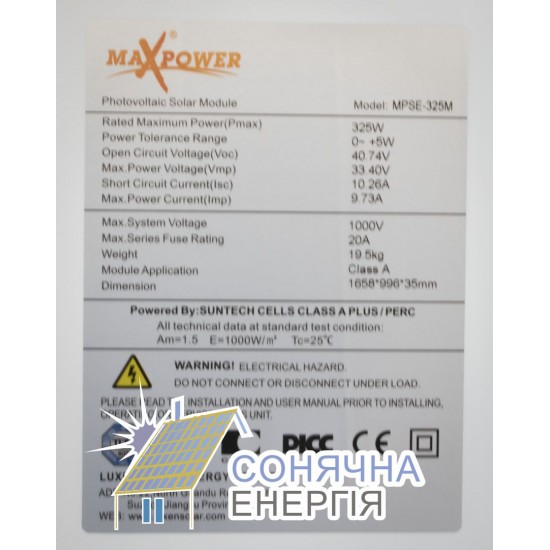

The photovoltaic module is based on SE-PERC technology, which increases the panel's overall operational efficiency and minimizes the PID effect. This ensures that the photovoltaic module operates at maximum efficiency. The open-circuit voltage and short-circuit current are 40.74 V and 10.26 A, respectively. The rated voltage and current at maximum power are 33.4 V and 9.73 A, respectively. The photovoltaic module’s efficiency is 19.68 %. This efficiency rating is on par with the best photovoltaic modules on the market. The thermal performance of this photovoltaic module can also be considered among the best on the market: the temperature coefficient of power is -0.36 %/Co, the temperature coefficient of voltage is -0.29 %/Co, and the temperature coefficient of current is 0.05 %/Co. The nominal temperature of the photovoltaic module is approximately 45 Co (with a permissible deviation of 2 Co). The power margin is –

The ambient temperature range for the photovoltaic module's operation is from minus 40 to 85 degrees Celsius.

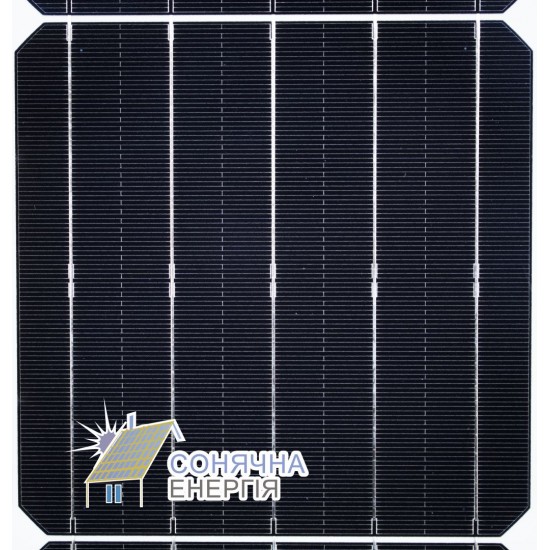

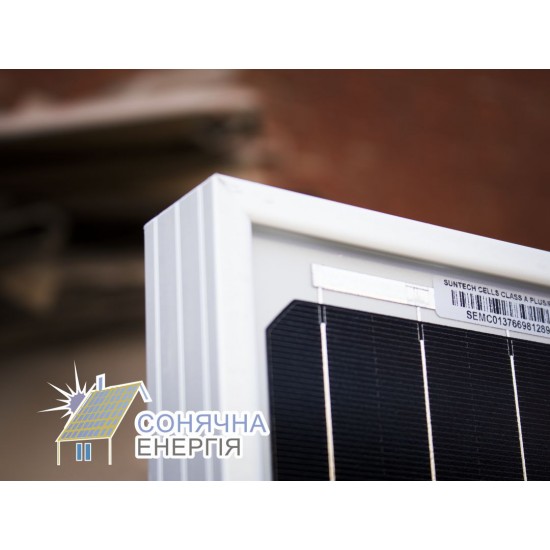

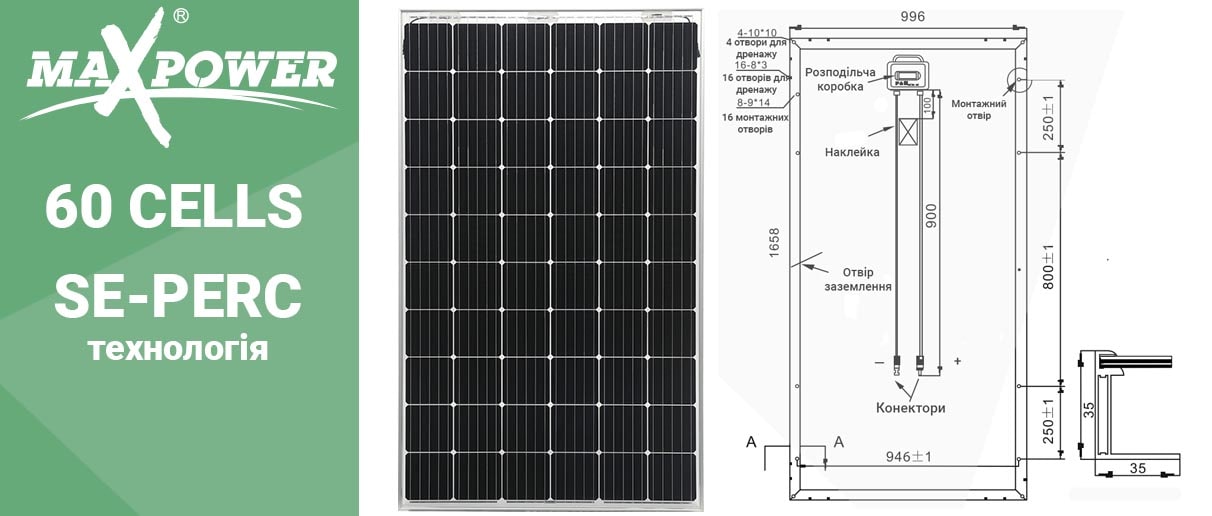

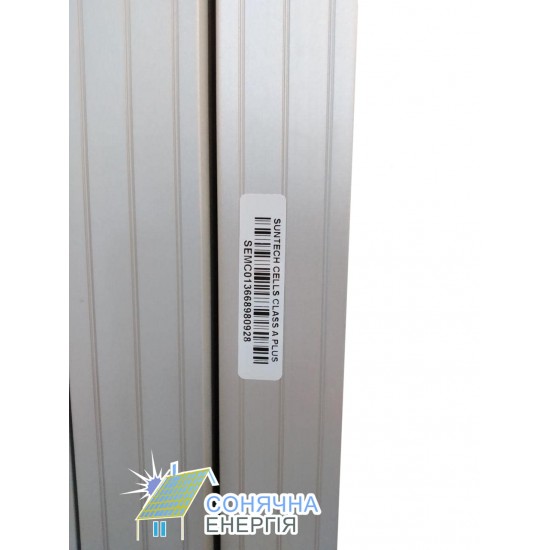

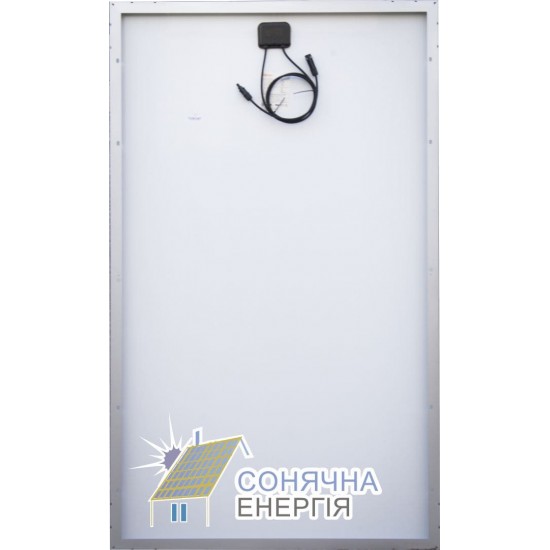

The back of the photovoltaic module features a junction box with an IP67 protection rating. The device measures 1,658 by 996 by 35 mm. The solar panel weighs 19.5 kg. A 3.2-mm-thick protective glass covers the front of the MaxPower MPSE-325M and protects it from mechanical damage, wind, and snow loads. The frame is made of anodized aluminum, which makes it lightweight and resistant to oxidation. The solar panel has a total of 60 solar cells (6 cells per row in 10 rows).

To summarize the advantages of this photomodule, let’s highlight the following:

• Compliance with ISO 9001:2015, IEC 61730, TÜV SÜD, CE, and CQC standards;
• A power loss of less than 2% after 1 year of operation;
• Wind and snow loads of 3,800 Pa and 5,400 Pa;
• Power margin of 0–5 W;
• Consistent performance in low-light conditions;
• Resistance to chemicals (salts, ammonia);
• 10- and 25-year warranties on photovoltaic modules (with power degradation);
