Jinko Solar JKM450M-60HL4-V Solar Panel

Description

Jinko Solar JKM450M-60HL4-V – a solar panel manufactured by Jinko Solar, a Tier 1 company.

The JKM450M-60HL4-V module has a rated power of 450 W and is the most powerful solution in the Tiger Pro series for this size. This power output allows the station to be equipped with fewer panels, which is reflected both in the total cost of the station and, to a certain extent, in its footprint and efficiency..

JKM450M-60HL4-V It has the following technical specifications:

• Half-Cell architecture. To reduce power losses in the panel caused by shading, the panel is designed using Half-Cell technology. The number of cells is doubled while maintaining the same area. When one part of the photovoltaic module is shaded, the other part continues to operate efficiently.
• The efficiency of the JKM450M-60HL4-V is 20.85%.
• The thermal power factor is low—0.35%. This means that if the photovoltaic module heats up by 1 degree above the standard temperature (45°C), it will lose only 0.35% of its rated power.
• Tested under real-world operating conditions. The surface of the photovoltaic module is anti-reflective and self-cleaning. The solar panel is resistant to ammonia, salt fog, sandstorms, and dust storms.
• The positive power margin ranges from +0 to 5 W.
• The mechanical load rating is 2,400 Pa, and the snow load rating is 5,400 Pa. Therefore, the panel is considered capable of withstanding various types of general loads.

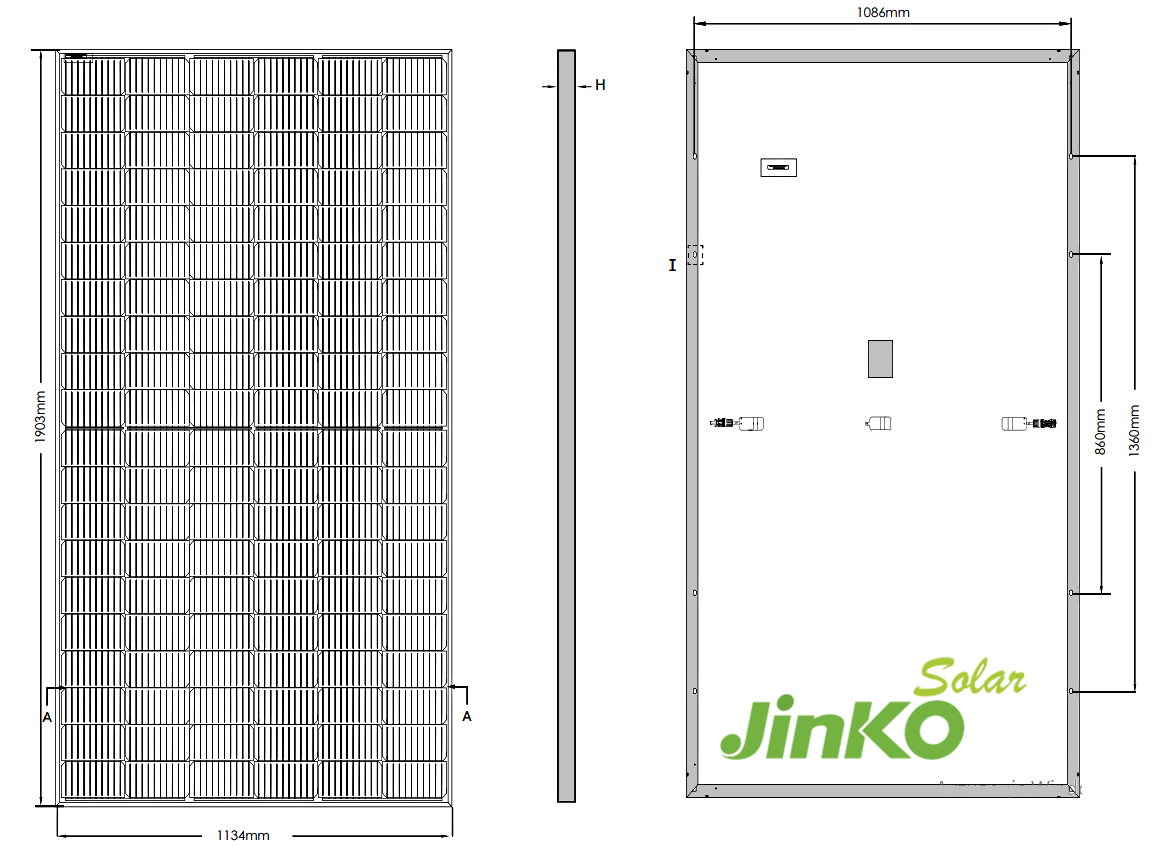

• The device’s dimensions and weight are as follows: 1903 × 1134 × 30 mm, and it weighs 24.2 kg. The panel frame is made of anodized aluminum, making it virtually corrosion-resistant. The operating temperature range is from -40 to +85.

The panel warranty is 12 years (90% power rating) and a 25-year linear warranty (80% power rating). Provided all usage requirements and recommendations are followed, the Jinko Solar JKM450M-60HL4-V will have a service life of at least 30 years.
