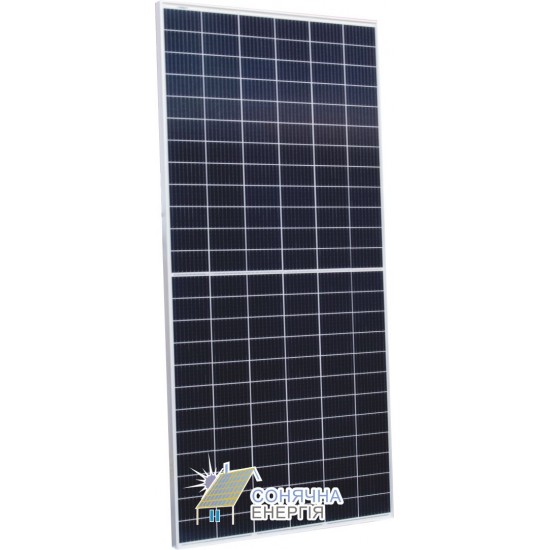

Ja Solar JAM72S30-535/MR Solar Panel

Description

 Ja Solar JAM72S30-535/MR – одна з найпотужніших сонячних панелей на ринку, її потужність досягає 535 Вт. На ринку сонячних панелей, китайська компанія Ja Solar It has established itself as a manufacturer of high-quality photovoltaic modules that meet international standards for quality and reliability. It consistently ranks among the top 5 on the prestigious Tier 1 list.

Using just 56 of these modules, you can create an array of panels with a total capacity of 30 kW, while saving some space on the mounting area and the mounting system. Overall, this model has several features that set it apart in the photovoltaic market:

• The temperature coefficient of power is -0.350 %/℃, which is currently a very high standard for photovoltaic modules. The lower this coefficient is, the more efficiently the panel operates at high temperatures, especially in the summer;
• ККД JAM72S30-535/MR reaches 20.7 %, so the panel is quite effective at converting solar radiation into electricity;

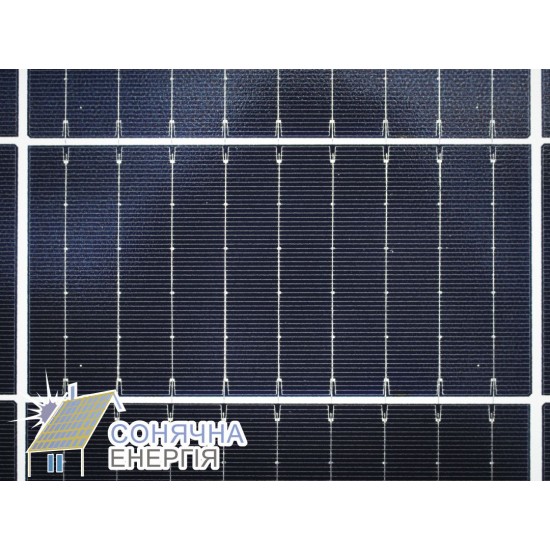

• 11 current-collecting tracks
• The panel has enhanced mechanical strength—5,400 Pa of static frontal load and 2,400 Pa of static load from the rear. In addition, the panel can withstand an impact from a 3-mm-diameter hailstone traveling at a speed of 20 m/s;
• The junction box meets the IP68 enclosure protection standard;
• Lower LCOE. Higher-power panels, in addition to their obvious technical advantages, are also more cost-effective, have a lower LCOE, and therefore have a shorter payback period.
• Only -0.55% of annual panel degradation over the next 25 years. After 25 years of operation, the module will lose 16% of its rated power.

​

Technical Specifications of the Photomodule Model JAM72S30-535/MR є наступними. Номінальна потужність становить 545 Вт. Напруга розімкнутого кола складає 49.45 В, напруга при максимальній потужності становить 41.48 В. Значення струму при максимальній потужності – 12.9 А. Струм короткого замикання – 13.79 А. Можливі відхилення потужності коливаються в значеннях 0…+5 Вт. Максимальна система напруга – 1000/1500 В.

The photovoltaic module’s housing is made of anodized aluminum and therefore does not rust. The ambient temperature range for the photovoltaic module to operate effectively is -40℃ to +85℃. The nominal temperature is 45±2℃.

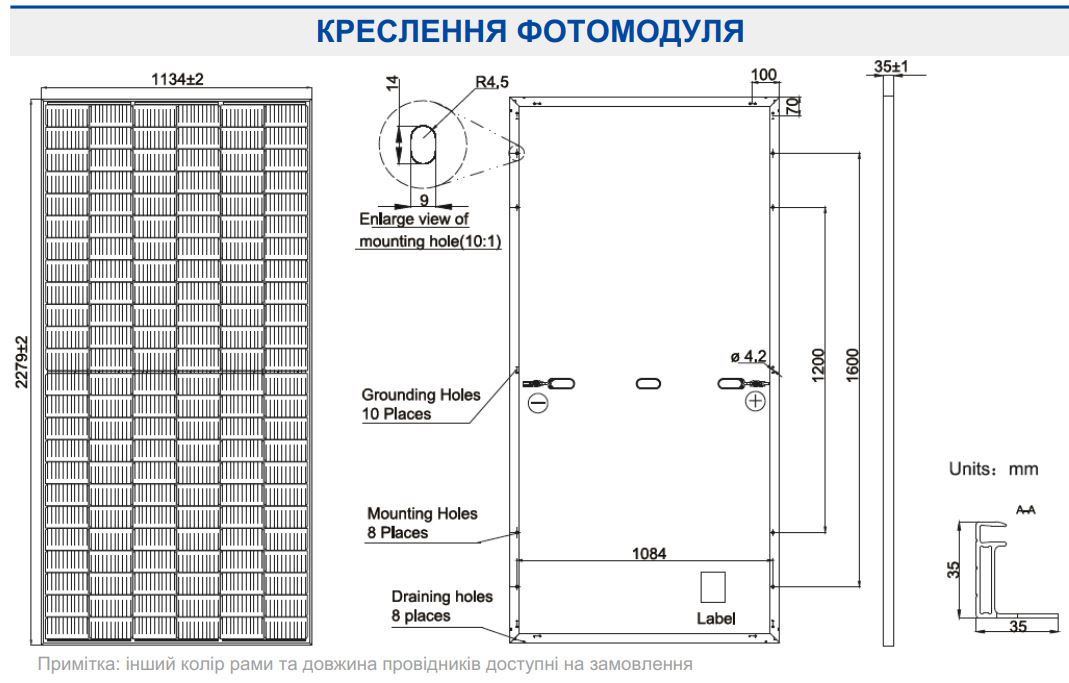

Photovoltaic module dimensions: 2279x1134x35. Weight: 28.6 kg (±3%). Number of photovoltaic cells: 144. The photovoltaic module is manufactured using Half-Cell technology, which doubles the number of active cells and, as a result, improves overall efficiency under shading conditions. PERC technology and anti-PID technology increase the panel’s power output.
