Ja Solar JAM72S20-460/MR Solar Panel

Description

In the solar panel market, a Chinese company Ja Solar has established itself as a manufacturer of high-quality photovoltaic modules that meet international standards for quality and reliability. The company is periodically included in the Tier 1 list, compiled by Bloomberg magazine to identify the most popular brands with an automated photovoltaic module production cycle and a high percentage of market share. It is safe to say that the company is one of the industry leaders.

JAM72S20-460/MR/1000V Solar Module – This is an excellent example of high power output, operational efficiency, high-quality construction, and a price that is optimal for the end customer. It meets international manufacturing standards. The photovoltaic module has undergone preliminary testing and demonstrates consistently high performance.

The module's rated power is 460 W. The high power rating is due to the use of only the most advanced technologies in the panel's manufacturing process, such as Half-Cell and PERC. The photovoltaic module is of the monocrystalline type. Another advantage of the module is its positive power margin of 0…+5 W. The temperature coefficient of power is –0.35 %/°C, which is one of the best values on the market. The maximum system voltage is 1,000 V.

The photovoltaic module's housing is made of anodized aluminum and therefore does not rust. The JAM72S20-460/MR solar panel can withstand mechanical snow loads of up to 3,600 Pa and wind loads of up to 2,400 Pa.

The ambient temperature range for efficient operation of the photovoltaic module is -40℃ to +85℃. The nominal temperature is 45±2℃.

Photovoltaic module dimensions: 2,112 mm × 1,052 mm × 35 mm. Weight: 24.7 kg (±3%). Number of photovoltaic cells: 144. The photovoltaic module is manufactured using Half Cell technology, which doubles the number of active cells and, as a result, increases overall efficiency under shading conditions.

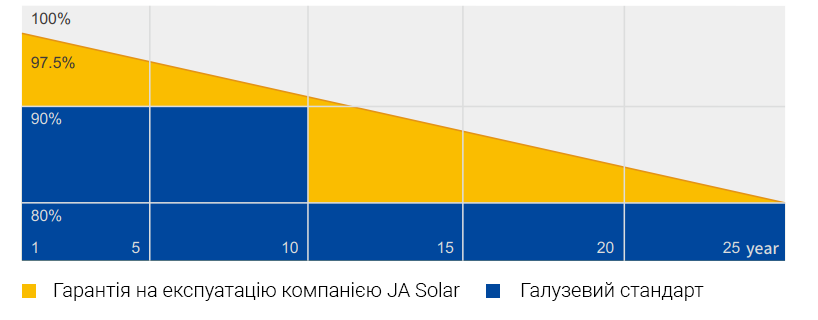

The junction box is protected against dust and moisture because it is manufactured in compliance with the IP68 protection standard. The device comes with a 25-year warranty (with a power loss of up to 80%). After 10 years of operation, the device loses 10% of its performance. The product warranty is valid for 12 years.
