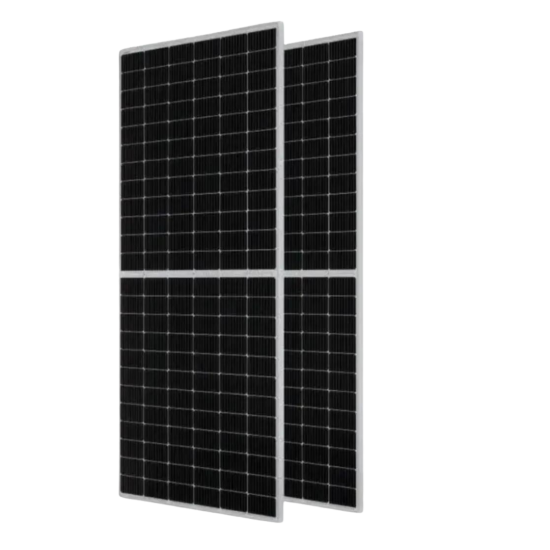

Ja Solar JAM72D30-560/LB Bifacial Solar Panel

Description

  Ja Solar JAM72D30-560/LB – one of the best bilateral solar panels on the market, with a power output of up to 560 W. In the solar panel market, a Chinese company Ja Solar It has established itself as a manufacturer of high-quality photovoltaic modules that meet international standards for quality and reliability. It consistently ranks among the top 5 on the prestigious Tier 1 list.

Using just 54 of these modules, you can create a solar array with a total capacity of 30 kW, while saving a bit on the space required for installation and the mounting system. The main advantage of the module is its dual-sided design. If these panels are installed on a metal structure with a high-albedo backing, this will increase the station’s power generation by +5–15%. Overall, this model has several features that set it apart in the photovoltaic market:

• The temperature coefficient of power is -0.35%/℃, which is currently a very high standard for photovoltaic modules. The lower this coefficient, the more efficiently the panel operates at high temperatures, especially in the summer;
• Efficiency of the JAM72D30-560/LB Bifacial reaches as high as 21.2%, so the panel is very effective at converting solar radiation into electricity;
• 16 current-collecting busbars. High efficiency is achieved through N-Type technology. In the production of this type of panel, silicon is used with the addition of undesirable impurities (such as phosphorus).
• The panel has enhanced mechanical strength—5,400 Pa of static frontal load and 2,400 Pa of static load from the rear. In addition, the panel can withstand an impact from a 3-mm-diameter hailstone traveling at a speed of 20 m/s;
• The junction box meets the IP68 enclosure protection standard;
• Lower LCOE. Higher-power panels, in addition to their obvious technical advantages, are also more cost-effective, have a lower LCOE, and therefore have a shorter payback period.
• Only -0.40% of annual panel degradation over the next 30 years. After 30 years of operation, the module will lose only 12.6% of its rated power.

​

Technical Specifications of the Photomodule Model   JAM78D30-560/LB Bifacial​ are as follows. The rated power is 560 W. The open-circuit voltage is 49.59 V, and the voltage at maximum power is 41.49 V. The current at maximum power is 13.50 A. The short-circuit current is 14.25 A. Possible power deviations range from 0 to +5 W. The maximum system voltage is 1,500 V.

The photovoltaic module’s housing is made of anodized aluminum and therefore does not rust. The ambient temperature range for the photovoltaic module to operate effectively is -40℃ to +85℃. The nominal temperature is 45±2℃.

Photovoltaic module dimensions: 2333x1134x30. Weight: 32.5 kg (±3%). Number of photovoltaic cells: 144. The photovoltaic module is manufactured using Half-Cell technology, which doubles the number of active cells and, as a result, increases overall efficiency under shading conditions. N-type technology and anti-PID technology further enhance the panel’s power output.
